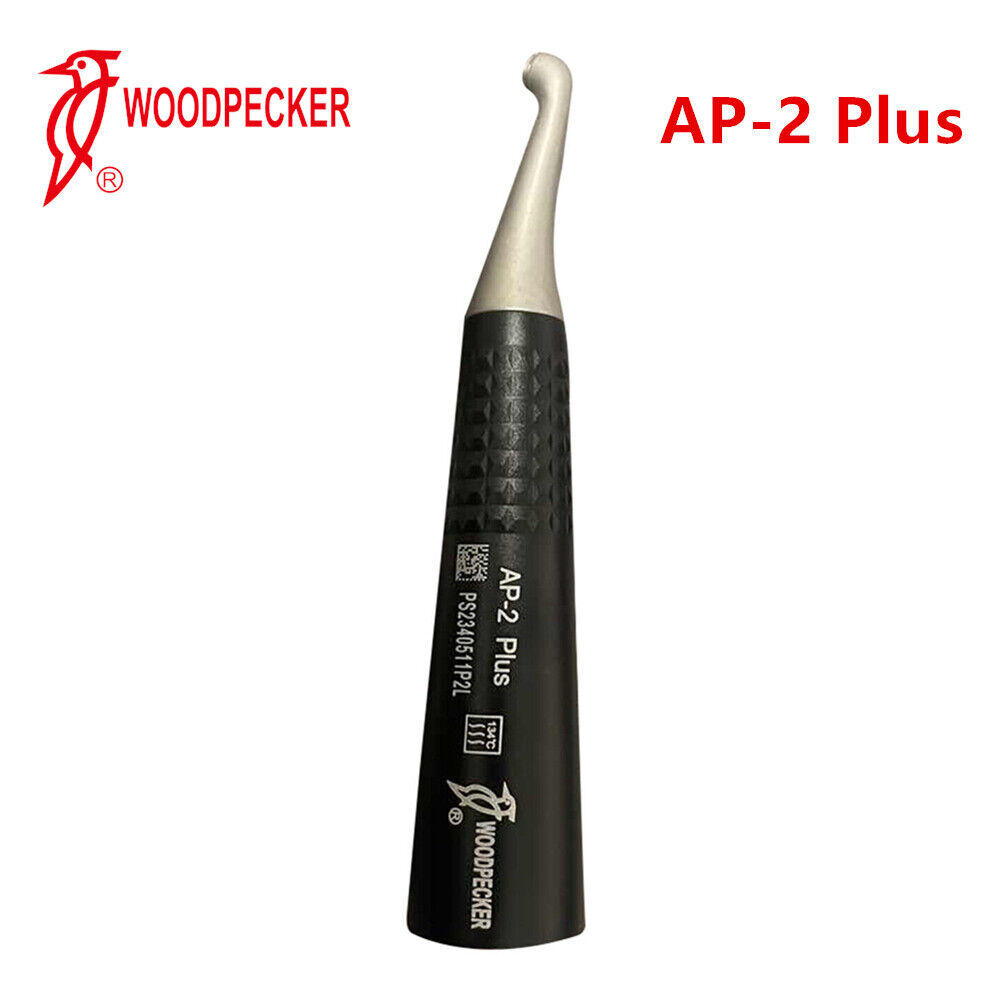

AP-H Sub-Gingival Handpiece AP-2 Plus

PLEASE READ TO ENSURE YOU ORDER THE CORRECT REPLACEMENT HANDPIECE FOR YOUR AP-H OR AP-H-L MODEL

Woodpecker Regular vs. Plus Model - What is the Difference?

Please note that the AP-H-Plus is the same as the AP-H, but it also includes the AP-2 subgingival handpiece, subgingival tips (qty 10) and a wrench to change the handpieces. If you do not require subgingival air polishing you can order the AP-H model.

The AP-H is an affordable quality hand-held dental air polisher.

The main features include:

• A comfortable lightweight design (market leader in product weight) that is ergonomic to use;
• Easy to adjust angle and spray;
• Supragingival & Subgingival modes available Two-in-one function if have AP-1 Plus and AP-2 Plus Handpieces;
• 0.7mm small-caliber nozzle that delivers a more concentrated powder output for precise & accurate scaling;
• Three-section air-polishing handpiece design;
• Detachable handpiece;
• User-friendly design;
• Suitable for all dental chairs and easy to install;
• The subgingival nozzle can be rotated 360 after installation;
• Pre-bendable subgingival nozzle design makes it easy to clear dead ends;
• Subgingival nozzle with three directions for powder and one for water output (minimum particle size is 0.25mm);
• Efficiently eliminates biofilms; and
• Transparent powder container enables easier observation of remaining powder.

AP-H Specifications

Input water pressure: 0.7bar to 2.2bar (70-220kPa)

Input air pressure: 3.5bar to 4.5bar (350-450kPa)

Working mode: continuous operation, Intermittent operation

Weight: About 0.150kg

Connector: Meets the requirements of YY / T 0514

Operation environment:

• Environment temperature: ＋ 10℃～ +40℃
• Relative humidity: 30% ～ 75%
• Atmospheric pressure：50kPa ～ 106kPa
